PHAP5-30RA2A3T2N3U5520

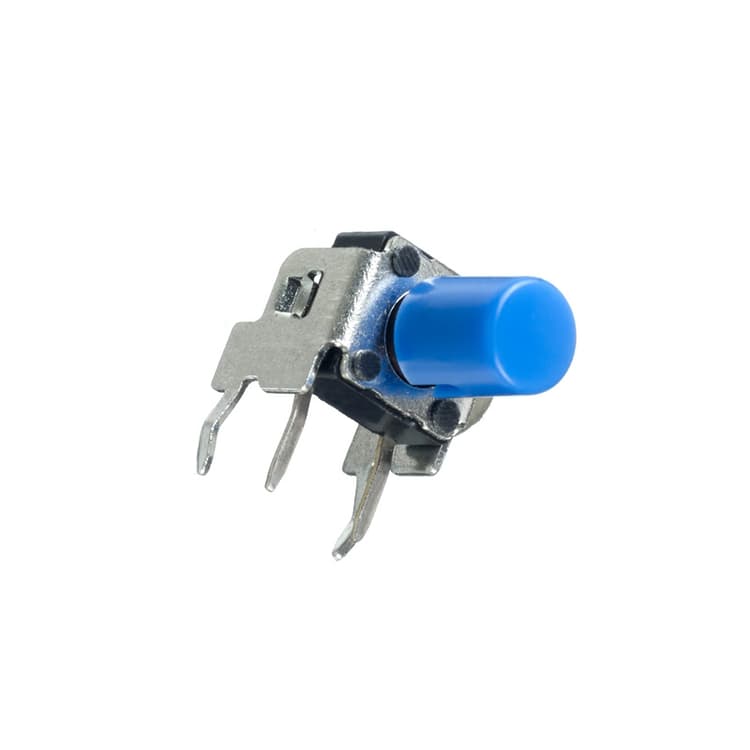

PHAP5-30RA2A3T2N3U5520 PCB 开关专为方便和安全的安装而设计。其通孔配置确保可靠稳定的安装。适用于各种电子应用,此开关能无缝集成到您的PCB设计中。
规格
一般规格:
- 紧凑的尺寸
- 积极的触觉反馈
- 袋装、管装和卷带包装
- SMT 焊接
环境指标:
- 工作温度范围:-25 °C 至 +70 °C
- 存储温度范围:-30 °C 至 +80 °C
电气规格:
- 单极常开(NO)
- 电流/电压额定值:50 mA 12 VDC max。
- 接触电阻:最大100 mΩ。
- 绝缘电阻(500VDC):100 MΩ min。
- 介电强度:250 VAC / 1 分钟
